Breviary Technical Ceramics


      Joining and Bonding Techniques

 Further Applications

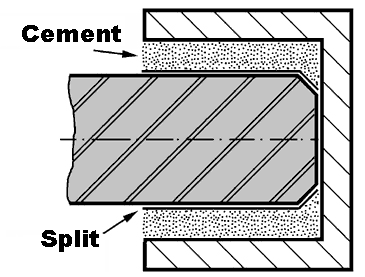

  • High-voltage insulator
    Fixing the mounting of an insulator subject to tensile or compressive stress.


Figure 207: Cemented joint

  • Coupling ring wheel
    Reinforcing a plastic

    o epoxy resin, ceramic filled
    o hardening conditions: 180 °C, 30 min
    o working temperature 220 °C


Figure 208: Coupling ring wheel

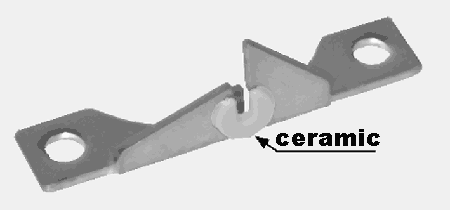

  • Slotted thread guide
    Precisely reinforcing the wear location on a component

    o 2-component glue
    o hardening conditions: 80 °C, 1 h
    o working temperature 100 °C

Figure 209: Slotted thread guide
